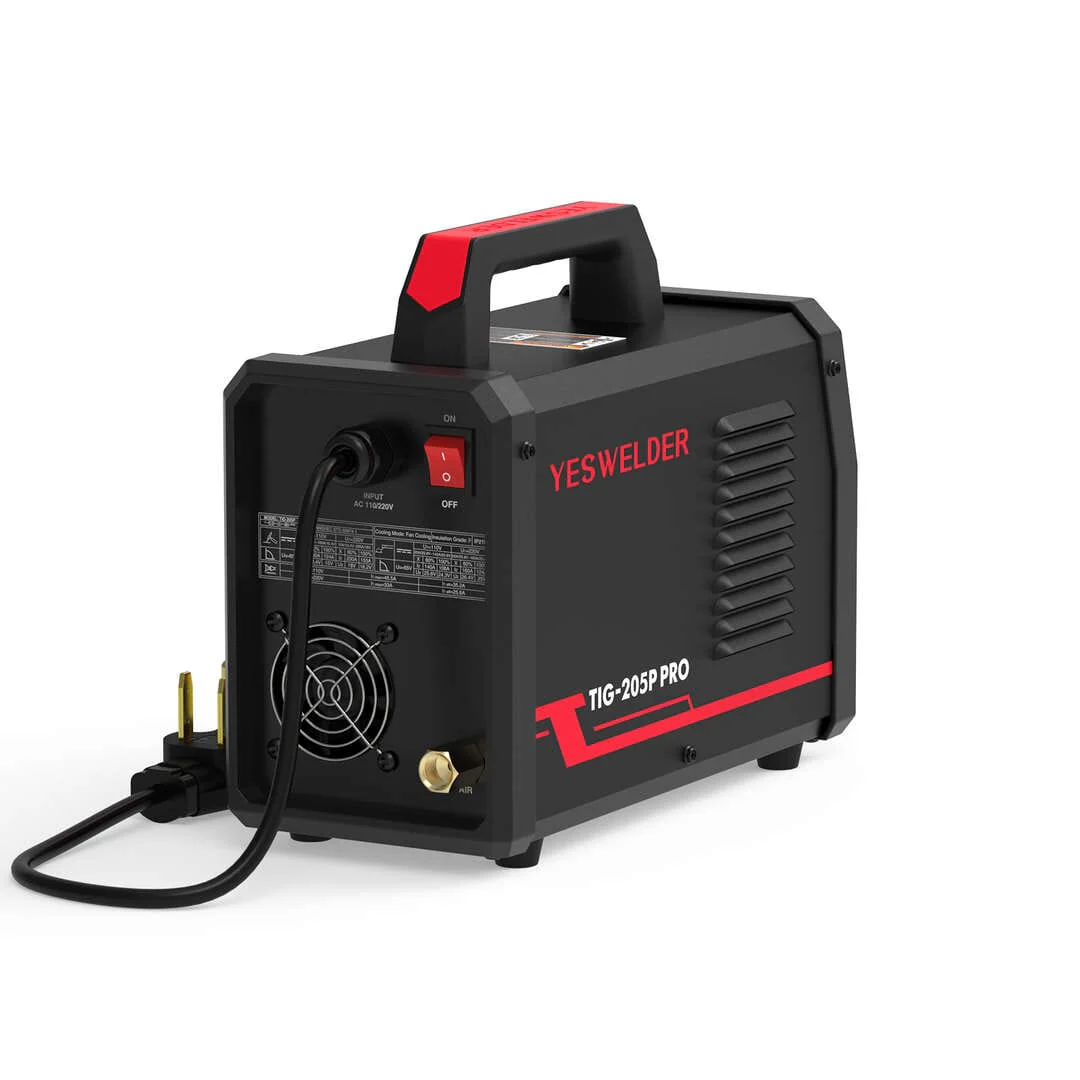

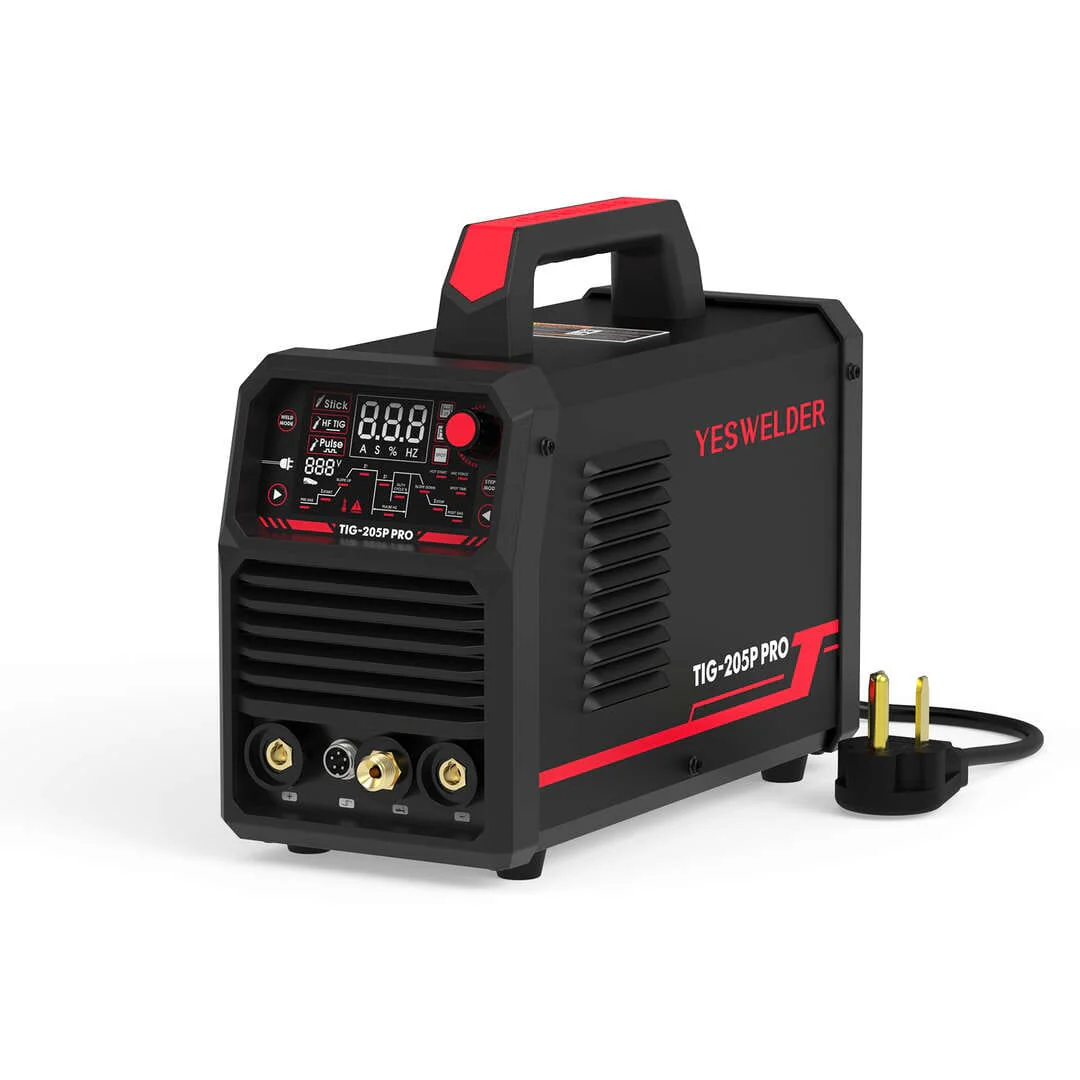

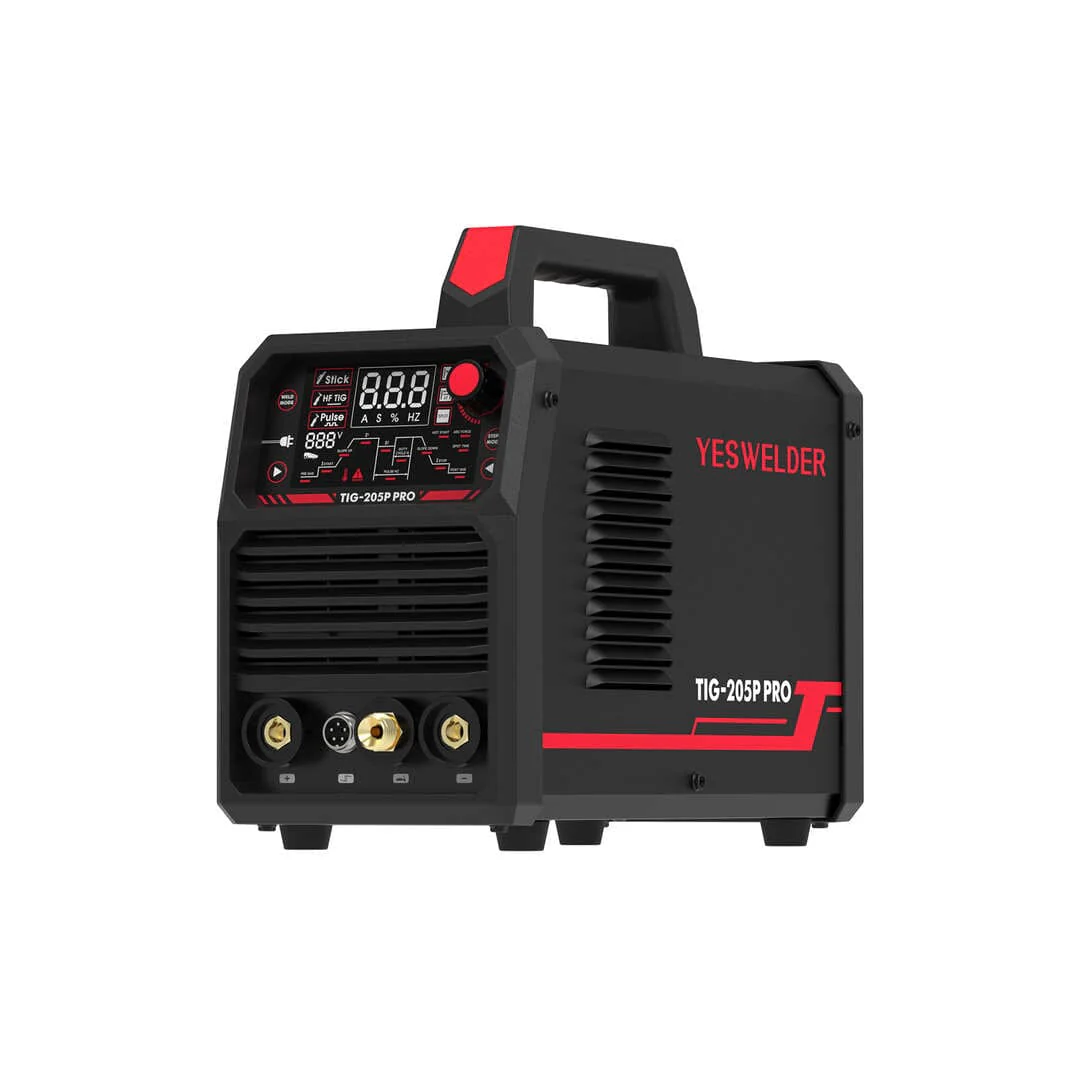

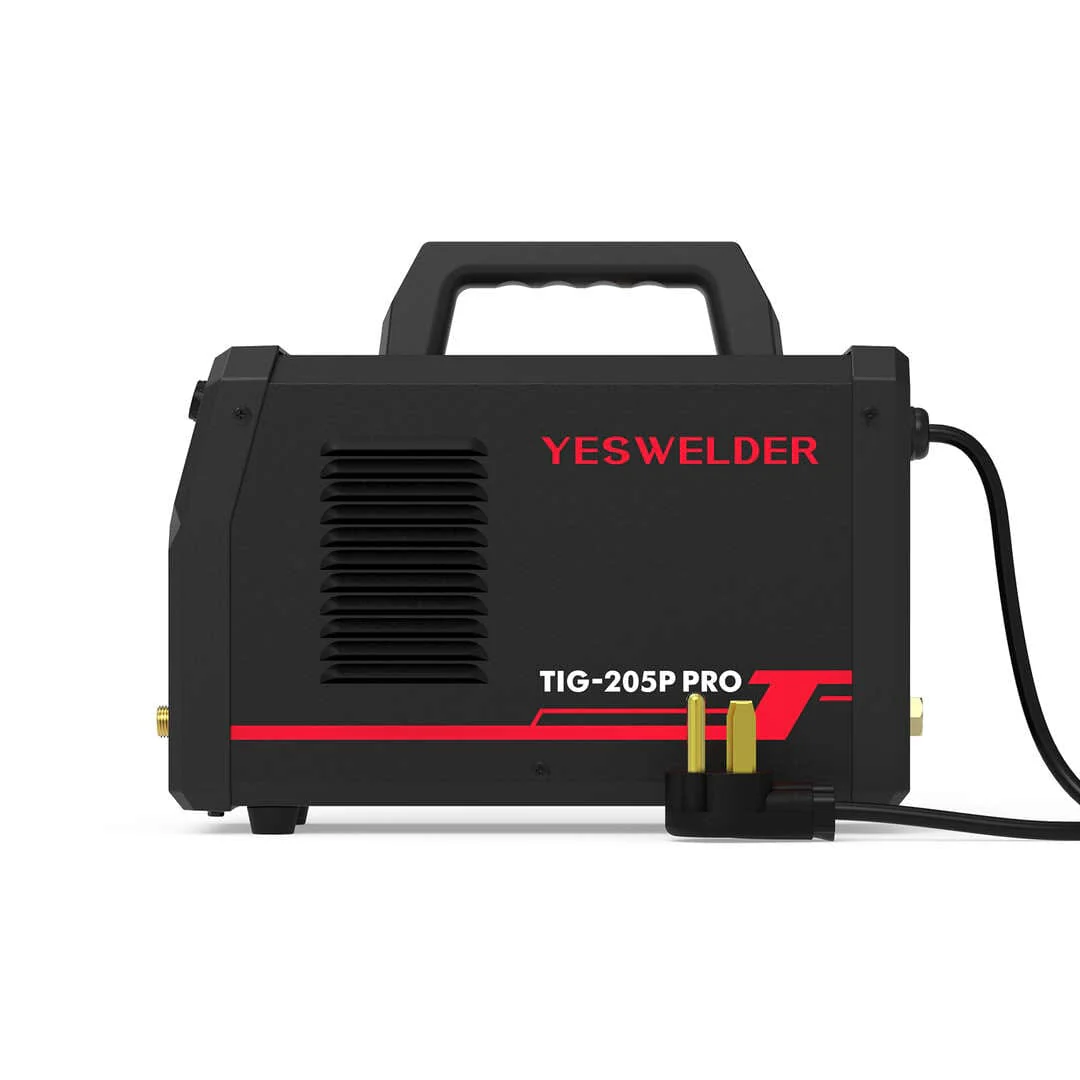

TIG-205P-PRO Pulse TIG Welder Stick/DC TIG/Pulse TIG 3 In 1 TIG Welder



Features:

• Product Dimension: 12.60”*5.51* 11.42”
• Product Weight:10.14lb
• Function: DC TIG, DC Pulsed TIG, STICK
• Input Power: 110/220V/1phase/60Hz
• Input Current:
• Output Range: DC: TIG 10~200Amps@220V,10~160A@110V
• Stick: 10~160Amps@220V,10~140A@110V
• Input Current: 50A(110V) & 30A(220V)
• Material: carbon steel, stainless steel

• This welder is not suitable for aluminum welding.

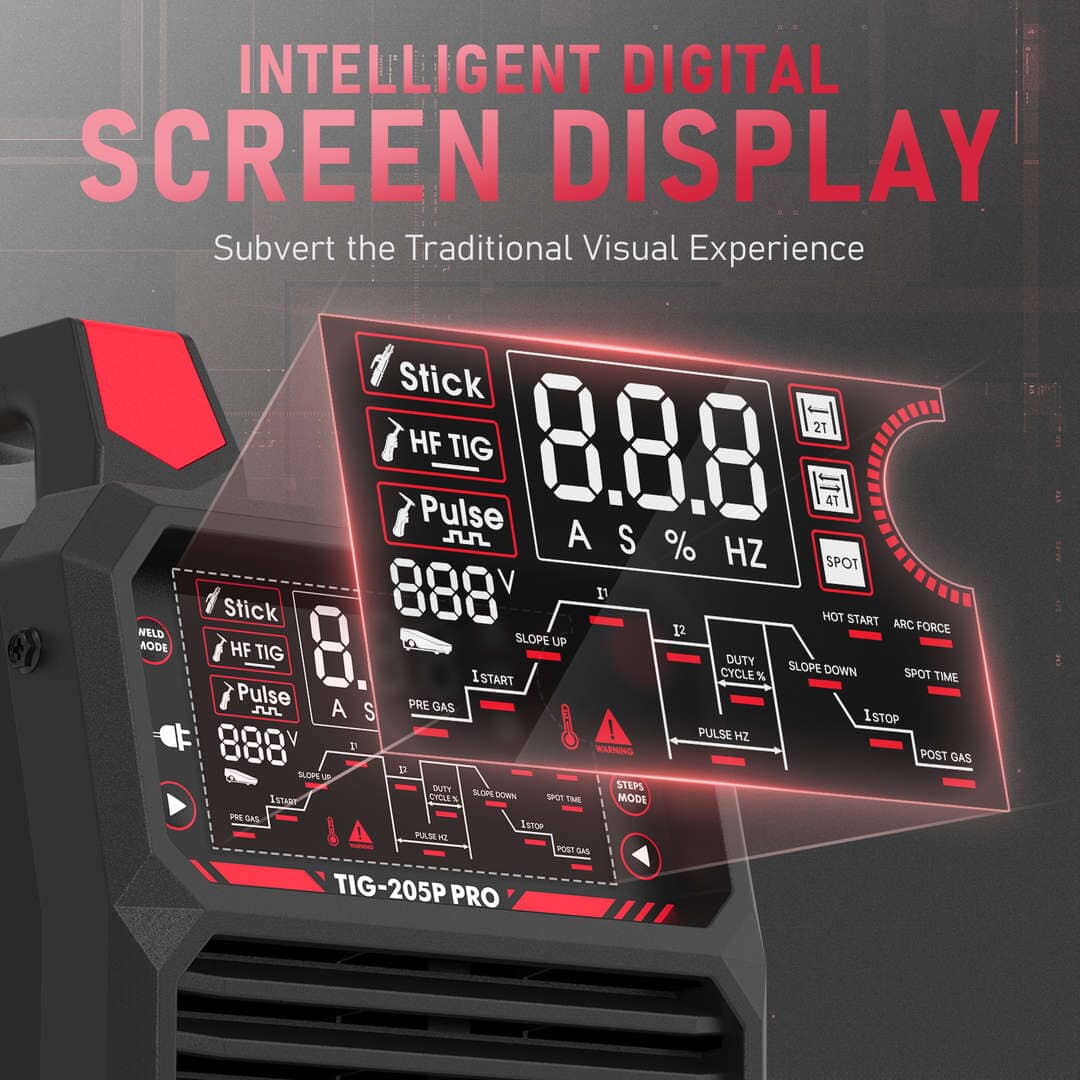

Digital Display With Precise Control:

Adjust Peak Current, Base Current, Pulse Frequency, and Pulse Width for tailored heat input, penetration control, and distortion reduction. Set Pre Flow Time, Start Current Level, Up-Slope Time, Down-Slope Time, Finish Current Level, and Post Flow Time along with 2 or 4T trigger functions for ultimate welding control. Adjustable output current, hot start current, and arc force current cater to specific welding requirements.

Multiple Welding Processes

DC TIG, Pulsed TIG, and Stick. HF arc ignition ensures pre-gas and instant arc ignition, preventing tungsten inclusion and electrode contamination. Improved stick welding performance with precise control algorithm: easy arc ignition, stable current, minimal spatter, no electrode sticking, good shaping, and automatic adaptation to cable length/section changes. Spot welding functions included.

Remote Control Capability

Utilize an additional torch with an amperage control knob or a 5-pin foot pedal for remote operation, catering to diverse user application

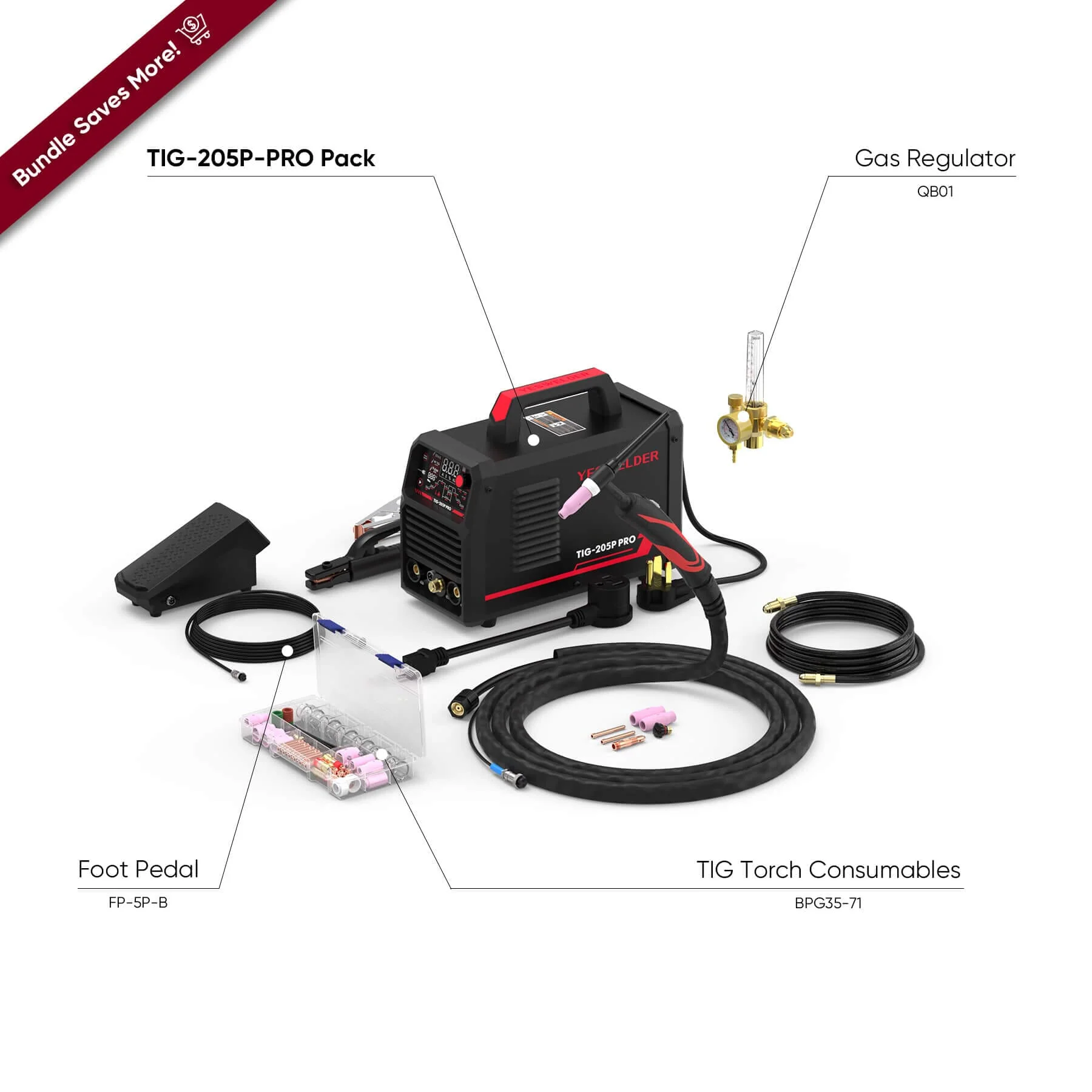

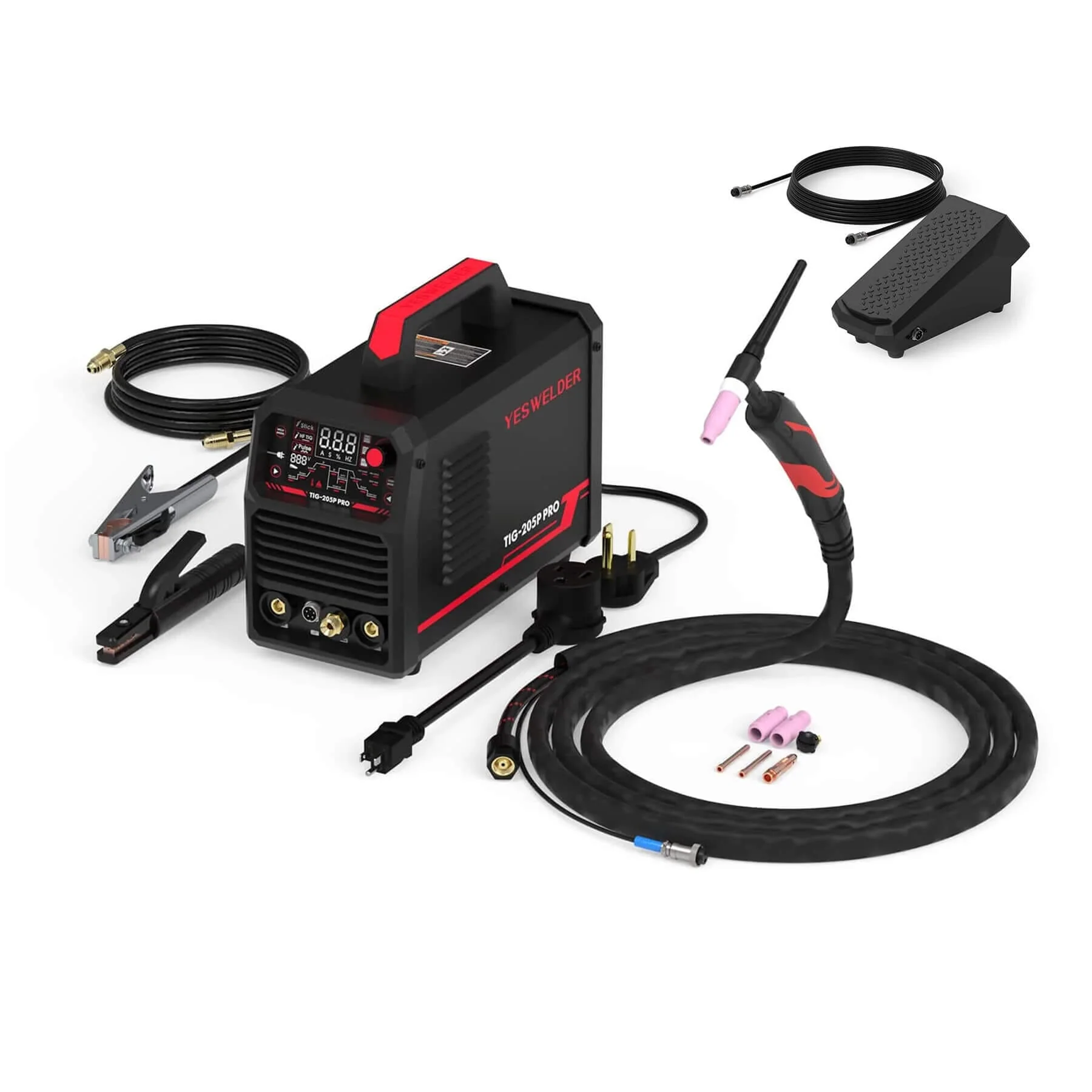

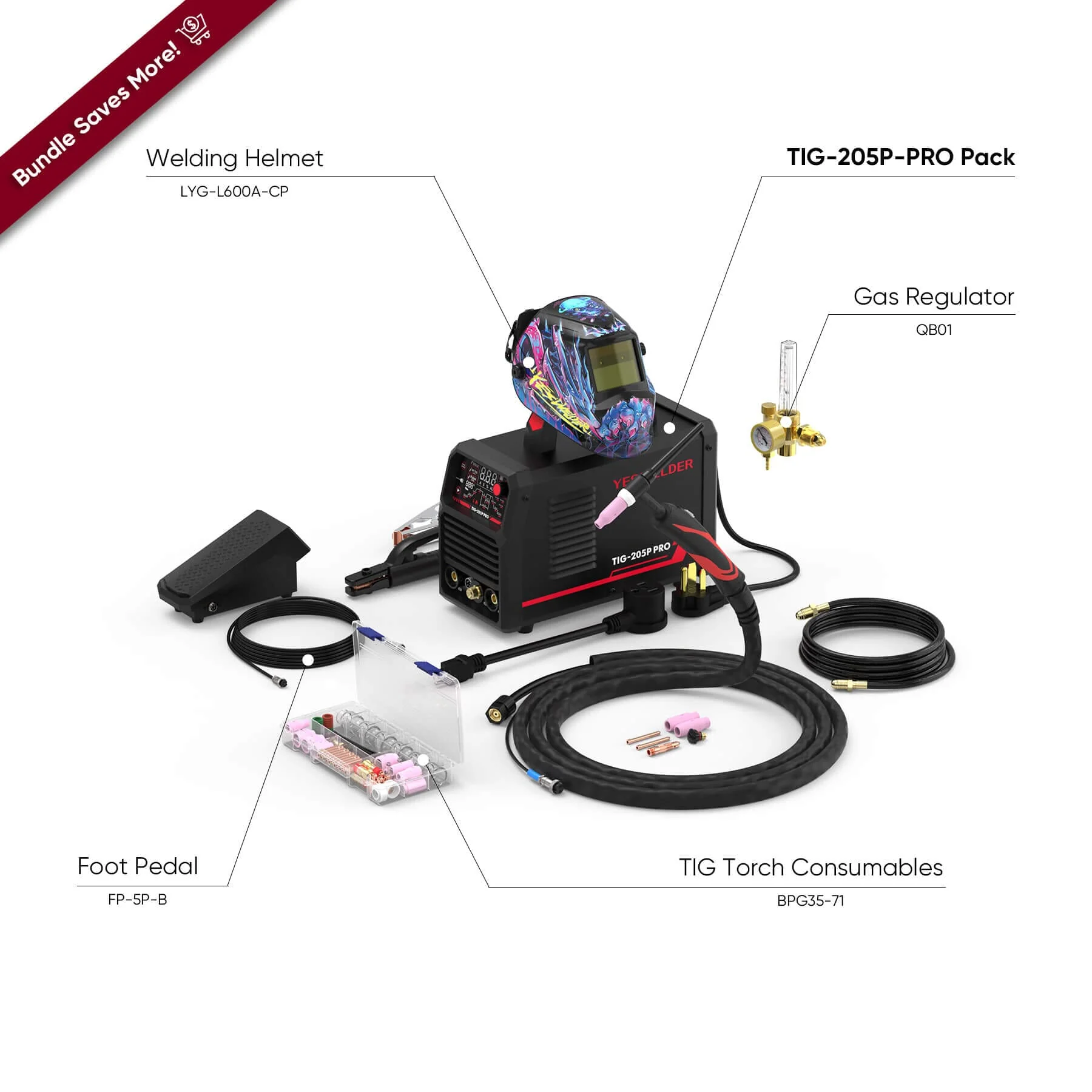

What’s Included

• TIG-205P-PRO TIG Welder
• 13ft WP-17 TIG Torch
• 10ft Electrode Holder
• 10ft Earth Clamp
• Argon Gas Hose
• Additional TIG Accessories: 3 Collets, 1 Collet Body, 3 Alumina Ceramic Cups, 1 Long Back Cap, 1 Short Back Cap
